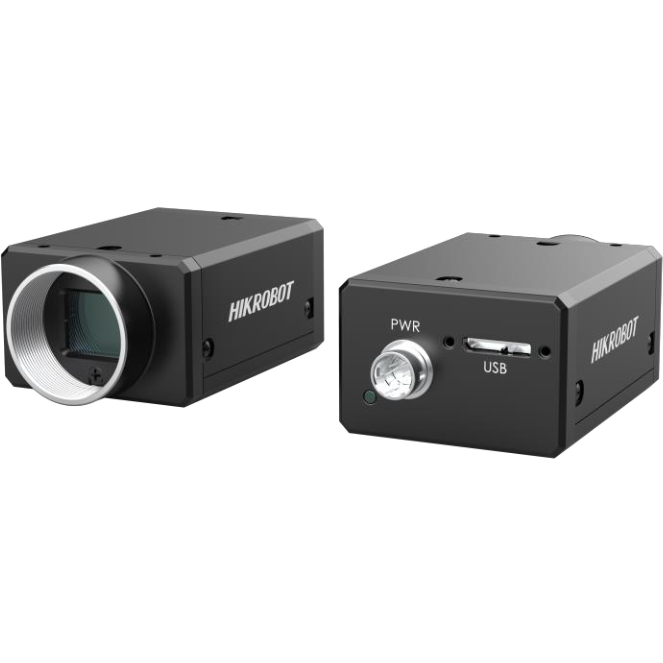

Hikrobot 12MP Area Scan Camera, USB3,IMX304,Mono MV-CH120-10UM(EoL)

https://annolution.com/web/image/product.template/8159/image_1920?unique=459fbb0
  • Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
  • Supports hardware triggering, software triggering and free run mode.
  • Adopts M2 screw holes for securing cable that connects USB3.0 interface.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH120-10UM(EoL)
    Area Scan Camera CMOS C-Mount Off/Once/Continuous exposure mode Mono USB3.0, compatible with USB2.0 3.45 μm × 3.45 μm 1.1" CH Area Scan Camera Sony® IMX304 4096 × 3000 23.1 fps @4096 × 3000 MV-CH120-10UM(EoL) 12MP Area Scan Camera, USB3,IMX304,Mono


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 3000
    Schnittstelle zur Datenübertragung USB3.0, compatible with USB2.0
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH120-10UM(EoL)
    Sensor Model Sony® IMX304
    Pixel Size 3.45 μm × 3.45 μm
    Sensor Size 1.1"
    Max Frame Rate 23.1 fps @4096 × 3000
    Mono/Color Mono
    Lens Mount C-Mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/10p/12/12p
    Image Buffer 128 MB
    Digital I/O 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
    Power Supply 12 VDC, supports USB3.0 power supply
    Power Consumption 3.5 W
    Dimension 44 mm × 29 mm ×
    Weight 100 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 80% RH, non-condensing
    Client Software MVS or third-party software meeting with USB 3.0 Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
