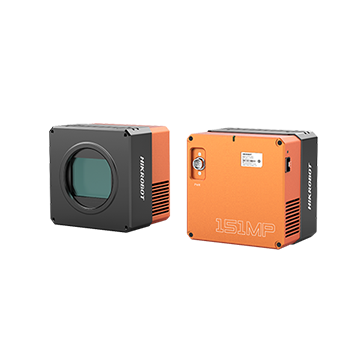

Hikrobot 151MP Area Scan Camera, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan MV-CH1510-10FM-M72-TF
- Supports Binning, LSC Sequencer, FFC and other ISP functions.
- Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.
- Adopts TEC technology to reduce sensor temperature and ensure high-quality images under long-time exposure condition.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 14208 × 10640 |
| Schnittstelle zur Datenübertragung | 10 Gigabit Ethernet |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Model Number | MV-CH1510-10FM-M72-TF |
| Sensor Model | Sony® IMX411 |
| Pixel Size | 3.76 μm × 3.76 μm |
| Sensor Size | 66.7 mm |
| Max Frame Rate | 6.2 fps @14208 × 10640 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | M72*0.75, flange back length 19.55 mm |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Rolling mode and Global Reset |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/10Packed/12/12Packed/16 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 24 VDC |
| Power Consumption | 11.3 W |
| Dimension | 120 mm × 120 mm × |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10 |
