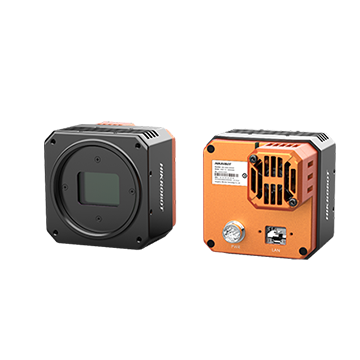

Hikrobot 25MP Area Scan Camera, 10GigE, Mono, M58-mount, with fan MV-CH250-60TM-M58S-NF
- Resolution of 5120 × 5120, and pixel size of 4.5 μm × 4.5 μm.
- Supports auto or manual adjustment of exposure time, and manual adjustment of gain, Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5120 × 5120 |
| Schnittstelle zur Datenübertragung | 10 Gigabit Ethernet, compatible with Gigabit Ethernet |
| Sensortyp | CMOS |
| Binning | Not support |
| Decimation | Not support |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH250-60TM-M58S-NF |
| Pixel Size | 4.5 μm × 4.5 μm |
| Sensor Size | 23 mm × 23 mm |
| Max Frame Rate | 31.7 fps @5120 × 5120 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | M58-mount, flange back focal length: 11.48 mm (0.5") |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 12 VDC to 24 VDC |
| Power Consumption | 15.1 W |

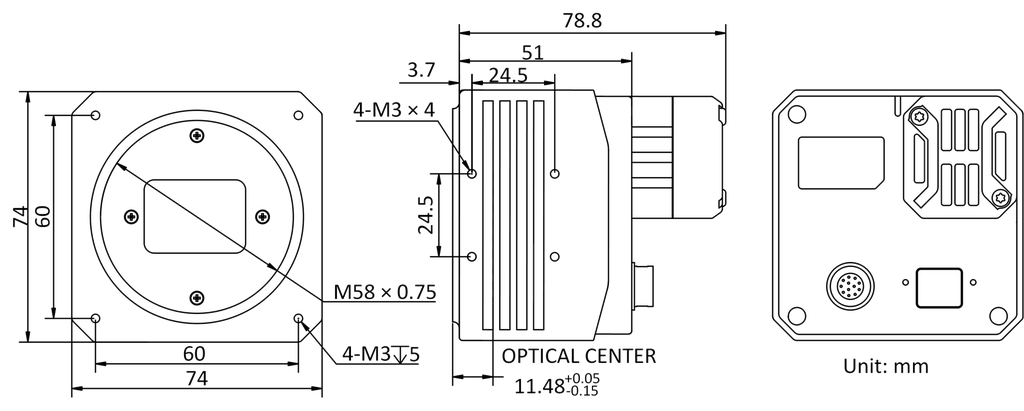

| Dimension | 74 mm × 74 mm × |
| Weight | 550 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10 |
