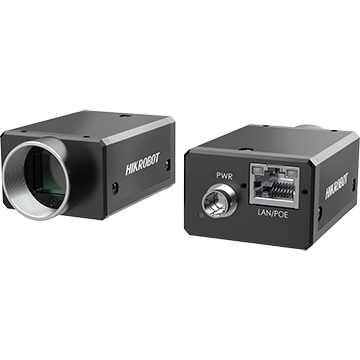

Hikrobot 25MP Area Scan Camera, GigE, GMAX0505, NIR, V4 MV-CH250-90GN
- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Supports increasing frame rate via ROI, and supports binning, reverse image output and LSC.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5120 × 5120 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet, compatible with Fast Ethernet |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH250-90GN |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Max Frame Rate | 4.5 fps @5120 × 5120 Mono 8 |
| Mono/Color | NIR |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Power Consumption | 3.1 W |
| Dimension | 29 mm × 44 mm × |
| Weight | 100 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
