  3. Hikrobot 2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color MV-CS020-10UC
test

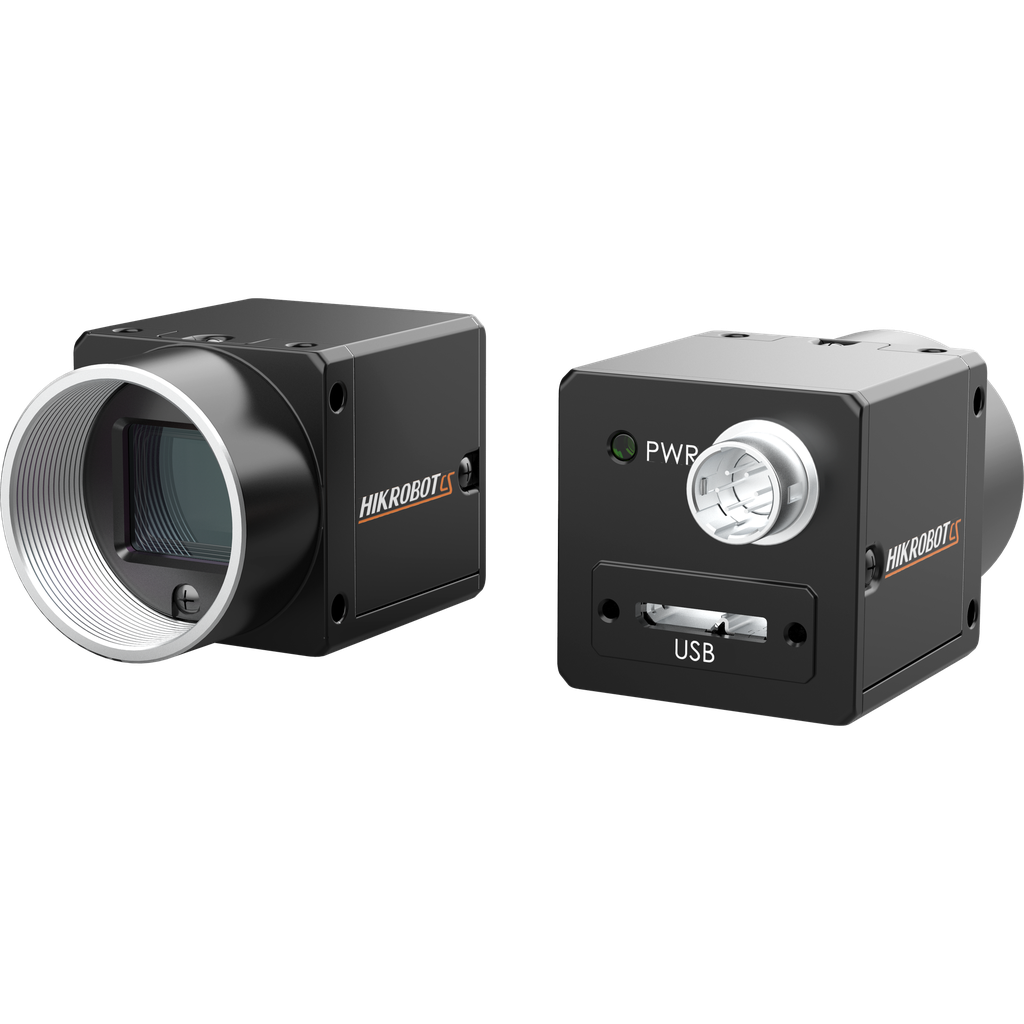

Hikrobot 2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color MV-CS020-10UC

https://annolution.com/web/image/product.template/8262/image_1920?unique=459fbb0
  • Adopts brand new design to reduce power consumption.
  • Supports sequencer, passive transmission, etc.
  • Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
  • Supports hard trigger, software trigger, free run, etc.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CS020-10UC
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode USB3.0, compatible with USB2.0 Sony® IMX430 4.5 μm × 4.5 μm 1/1.7" 1624 × 1240 C-mount CS Area Scan Camera MV-CS020-10UC 2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color 90 fps @1624 × 1240 Bayer RG 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 1624 × 1240
    Schnittstelle zur Datenübertragung USB3.0, compatible with USB2.0
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2
    Decimation Supports 1 × 1, 2 × 2
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CS020-10UC
    Sensor Model Sony® IMX430
    Pixel Size 4.5 μm × 4.5 μm
    Sensor Size 1/1.7"
    Max Frame Rate 90 fps @1624 × 1240 Bayer RG 8
    Mono/Color Color
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12,
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Power Consumption 2.4 W
    Dimension 29 mm × 29 mm ×
    Weight 80 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with USB3.0 Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
