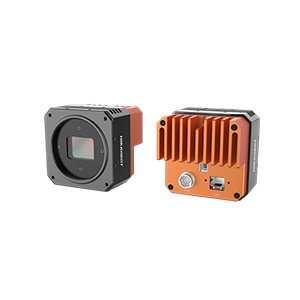

Hikrobot 31MP Area Scan Camera, 10GigE, IMX342, Color, M58-mount, fanless MV-CH310-10TC-M58S-NN

https://annolution.com/web/image/product.template/8225/image_1920?unique=bff36cf
  • 31 MP resolution, and pixel size of 3.45 μm × 3.45 μm.
  • Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
  • Adopts design without fan to ensure stability of high-speed image acquisition.
  • Adopts low power consumption design.
  • Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH310-10TC-M58S-NN
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode 3.45 μm × 3.45 μm CH Area Scan Camera 10 Gigabit Ethernet, compatible with Gigabit Ethernet M58*0.75, flange focal length 11.48 mm (0.5") Sony® IMX342 22.3 mm × 16.7 mm 6464 × 4852 MV-CH310-10TC-M58S-NN 31MP Area Scan Camera, 10GigE, IMX342, Color, M58-mount, fanless 17.2 fps @6464 × 4852 Bayer RG 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 6464 × 4852
    Schnittstelle zur Datenübertragung 10 Gigabit Ethernet, compatible with Gigabit Ethernet
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH310-10TC-M58S-NN
    Sensor Model Sony® IMX342
    Pixel Size 3.45 μm × 3.45 μm
    Sensor Size 22.3 mm × 16.7 mm
    Max Frame Rate 17.2 fps @6464 × 4852 Bayer RG 8
    Mono/Color Color
    Lens Mount M58*0.75, flange focal length 11.48 mm (0.5")
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, FCC, RoHS, KC
    Pixel Format Mono 8/10/12,
    Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
    Power Supply 9 VDC to 24 VDC
    Power Consumption 11.4 W
    Dimension 74 mm × 74 mm ×
    Weight 560 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with GigE Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 64-bit Windows 11
