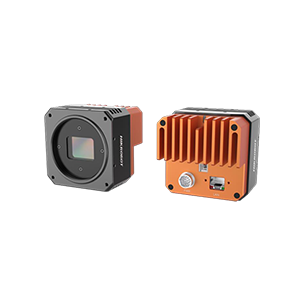

Hikrobot 31MP Area Scan Camera, 10GigE, IMX342, Mono, M58-mount, fanless MV-CH310-10TM-M58S-NN
- 31 MP resolution, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
- Adopts design without fan to ensure stability of high-speed image acquisition.
- Adopts low power consumption design.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 6464 × 4852 |
| Schnittstelle zur Datenübertragung | 10 Gigabit Ethernet, compatible with Gigabit Ethernet |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH310-10TM-M58S-NN |
| Sensor Model | Sony® IMX342 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 22.3 mm × 16.7 mm |
| Max Frame Rate | 17.2 fps @6464 × 4852 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | M58*0.75, flange focal length 11.48 mm (0.5") |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, FCC, RoHS, KC |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Power Consumption | 11.2 W |
| Dimension | 74 mm × 74 mm × |
| Weight | 560 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
