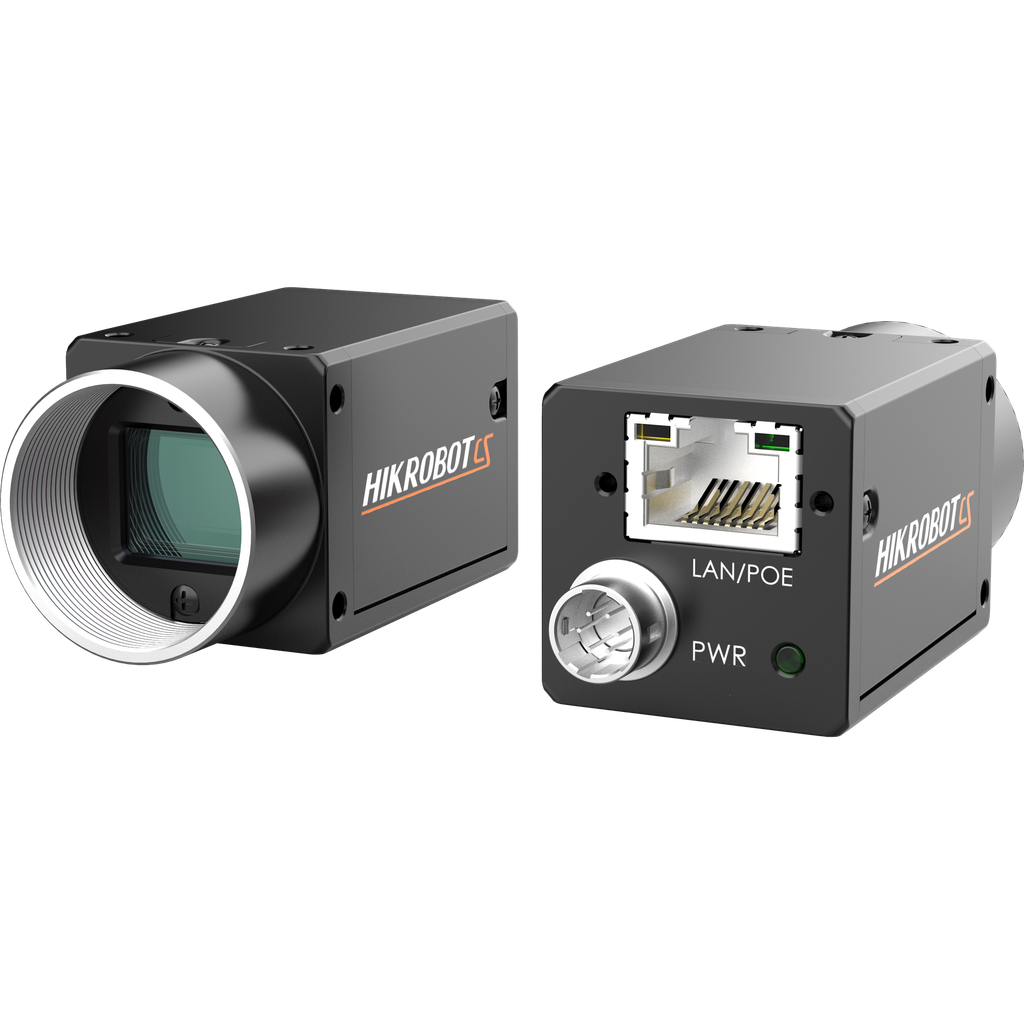

Hikrobot 5MP Area Scan Camera,GigE,IMX264,Color,Basic MV-CS050-10GC
- Adopts brand new design to reduce power consumption.
- Supports multiple ISP functions like CCM to provide high-quality images.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 2448 × 2048 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet, compatible with Fast Ethernet |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CS050-10GC |
| Sensor Model | Sony® IMX264 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 2/3" |
| Max Frame Rate | 24.2 fps @2448 × 2048 Bayer RG 8 |
| Mono/Color | Color |
| Lens Mount | C-Mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, FCC, RoHS, KC |
| Pixel Format | Mono 8/10/12, |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Power Consumption | 2.9 W |
| Dimension | 29 mm × 29 mm × |
| Weight | 100 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS |
