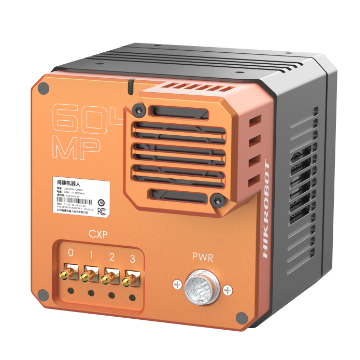

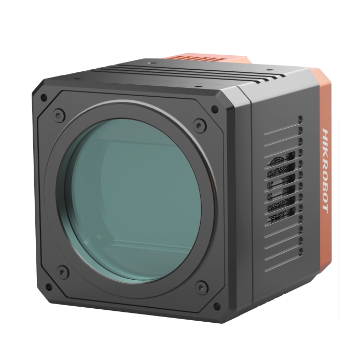

Hikrobot 604MP Area Scan Camera, CXP-6, Mono MV-CH6040-10XM-M72-NF
- Resolution of 28416 × 21280, pixel size of 3.76 µm × 3.76 µm.
- Adopts ISP algorithm to improve image quality.
- Adopts rolling shutter CMOS sensor to provide high dynamic range.
- Supports FFC correction, LSC correction, and 16-bit ADC output.
- Adopts CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 28416 × 21280 |
| Schnittstelle zur Datenübertragung | CoaXPress with DIN interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Not support |
| Reverse Image | Supports horizontal reverse image output |
| Model Number | MV-CH6040-10XM-M72-NF |
| Sensor Model | Sony® IMX411 |
| Pixel Size | 3.76 μm × 3.76 μm |
| Sensor Size | 66.7 mm |
| Max Frame Rate | 1.45 fps @ 28416 × 21280 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | M72-mount, optical back focal length 19.55 mm |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12/16 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 24 VDC |
| Power Consumption | 15.0 W |

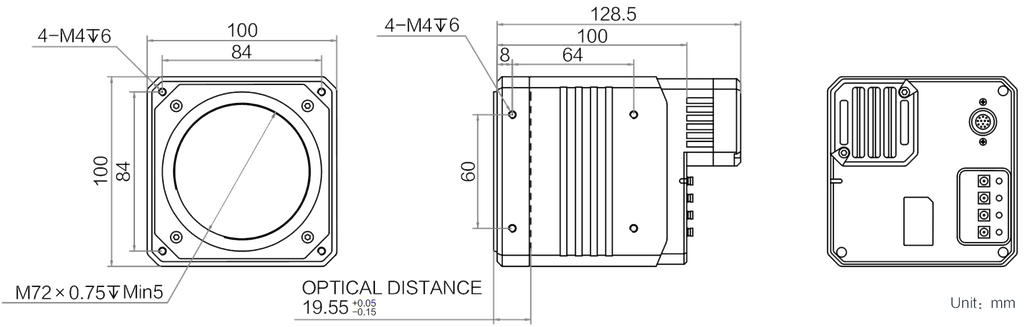

| Dimension | 100 mm × 100 mm × |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | Frame grabber software meeting with CoaXPress Protocol |
| Operating System | 64-bit Windows 7/10/11 with 16 GB memory or above |
| Working Temperature | 0 °C to 50 °C |
