  3. Hikrobot 8.9MP Area Scan Camera, GigE,IMX267,Color MV-CH089-10GC(EoL)
test

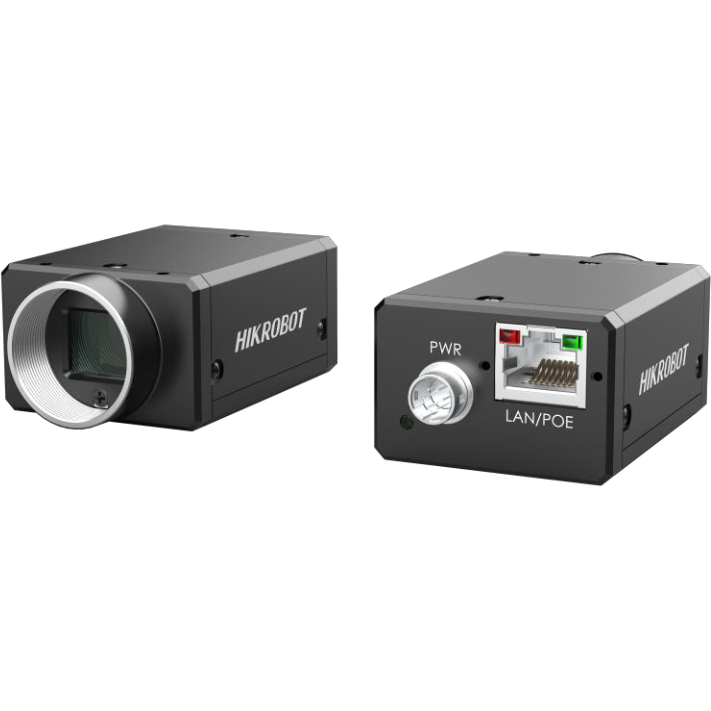

Hikrobot 8.9MP Area Scan Camera, GigE,IMX267,Color MV-CH089-10GC(EoL)

https://annolution.com/web/image/product.template/8137/image_1920?unique=bff36cf
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Support auto exposure control, LUT, Gamma correction, etc.
  • Up to 128 MB local memory for burst transmission and retransmission.
  • Supports hardware triggering, software triggering, etc.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH089-10GC(EoL)
    Area Scan Camera CMOS Color Gigabit Ethernet, compatible with Fast Ethernet C-Mount Off/Once/Continuous exposure mode 3.45 μm × 3.45 μm 1" CH Area Scan Camera Sony® IMX267 4096 × 2160 MV-CH089-10GC(EoL) 8.9MP Area Scan Camera, GigE,IMX267,Color 13 fps @4096 × 2160


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 2160
    Schnittstelle zur Datenübertragung Gigabit Ethernet, compatible with Fast Ethernet
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH089-10GC(EoL)
    Sensor Model Sony® IMX267
    Pixel Size 3.45 μm × 3.45 μm
    Sensor Size 1"
    Max Frame Rate 13 fps @4096 × 2160
    Mono/Color Color
    Lens Mount C-Mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
    Digital I/O 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 12 VDC, supports PoE
    Power Consumption 3.8 W
    Dimension 44 mm × 29 mm ×
    Weight 140 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 80% RH, non-condensing
    Client Software MVS or third-party software meeting with GigE Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
