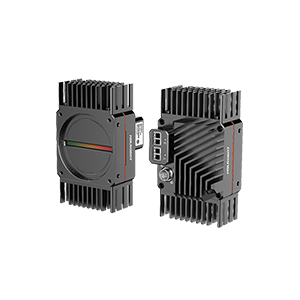

Hikrobot 16k 3.5μm XoF(2 SFP+) linescan camera，mono MV-CL162-91F2M

https://annolution.com/web/image/product.template/8354/image_1920?unique=6224869
  • Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
  • Provides dual XoF fiber connectors with 20 GB bandwidth.
  • Supports multiple exposure and acquisition methods.
  • Supports image mode of 1-Line and 2-TDI.
  • Adopts bi-directional configurable I/O hardware design.
  • Compact design and flexible installation.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CL162-91F2M
    CMOS Mono Line Scan Camera CL Line Scan Camera Off/ Once/ Continuous exposure mode, and supports trigger-width exposure 2LC fiber connector M72*0.75, flange focal length 12 mm (0.5"), applicable to F-mount via lens adapter 3.5 μm × 3.5 μm 16384 × 2 MV-CL162-91F2M 16k 3.5μm XoF(2 SFP+) linescan camera，mono


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 16384 × 2
    Schnittstelle zur Datenübertragung 2LC fiber connector
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal reverse image output
    Model Number MV-CL162-91F2M
    Pixel Size 3.5 μm × 3.5 μm
    Mono/Color Mono
    Lens Mount M72*0.75, flange focal length 12 mm (0.5"), applicable to F-mount via lens adapter
    Exposure Mode Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
    Certification CE, RoHS, KC, UL
    Pixel Format Mono 8/10/12
    Digital I/O 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
    Power Supply 12 VDC to 24 VDC
    Power Consumption 10.6 W
    Dimension 132 mm × 76 mm ×
    Weight 600 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 80 °C
    Humidity 5% to 90% RH, non-condensing
    Client Software MVS
    Operating System 32/64-bit Windows XP/7/10, 64-bit Windows 11
