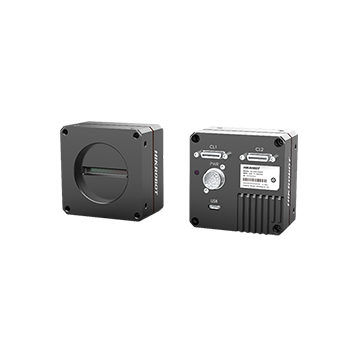

Hikrobot 4k Camera Link Line Scan Cameras，Color MV-CL042-91CC

https://annolution.com/web/image/product.template/8370/image_1920?unique=6224869
  • Supports multiple exposure and image acquisition methods with max. line rate of 100 kHz.
  • Applies multiple ISP technologies and supports manual adjustment for Gamma correction, PRNUC correction, LUT, black level, etc.
  • Supports bi-directional I/O wiring for flexible input/output settings.
  • Compact design and flexible installation.
  • Compatible with Camera Link Protocol and GenlCam Standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CL042-91CC
    CMOS Color Line Scan Camera CL Line Scan Camera 7 μm Camera Link (SDR connector); USB interface for updating firmware Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure 4096 × 2 M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter MV-CL042-91CC 4k Camera Link Line Scan Cameras，Color


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 2
    Schnittstelle zur Datenübertragung Camera Link (SDR connector); USB interface for updating firmware
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal reverse image output
    Model Number MV-CL042-91CC
    Pixel Size 7 μm
    Mono/Color Color
    Lens Mount M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter
    Exposure Mode Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
    Certification CE, RoHS, KC
    Pixel Format Mono 8, RGB 8, Bayer RGBG 8
    Digital I/O 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
    Power Supply 12 VDC to 24 VDC
    Power Consumption 6.1 W
    Dimension 62 mm × 62 mm ×
    Weight 238 g
    Ingress Protection IP40
    Storage Temperature –30 °C to 80 °C
    Humidity 5% RH to 95% RH, no condensation
    Client Software MVS and frame grabber software meeting with Camera Link Protocol
    Operating System 32/64-bit Windows XP/7/10/11
