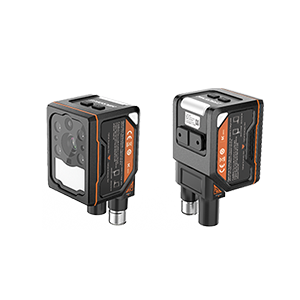

Hikrobot SC3000X series vision sensor，16mm focal length，5MP，Mono MV-SC3050XM-16M-WBN
- Adopts embedded hardware platform to realize high-speed image processing.
- Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
- Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes.
- Adopts multiple IO interfaces for input and output signals.
- Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.
- Rotatable cable tail design, suitable for narrow space.
- Adopts polarized, diffused, and full-transparent multiple optical lighting with good environmental adaptability.
- IP67 protection without fear of harsh industrial application environments.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 2432 × 2048 |
| Schnittstelle zur Datenübertragung | Fast Ethernet (100 Mbit/s) |
| Sensortyp | CMOS |
| Model Number | MV-SC3050XM-16M-WBN |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/1.45" |
| Max Frame Rate | 40 fps |
| Mono/Color | Mono |
| Lens Mount | M12-mount, mechanical autofocus supported |
| Certification | CE, KC |
| Pixel Format | Mono 8 |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 |
| Power Supply | 24 VDC |
| Power Consumption | 6.5 W |
| Dimension | Straight angle: 80.1 mm × 43 |
| Weight | 190 g |
| Ingress Protection | IP67 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | SCMVS |
